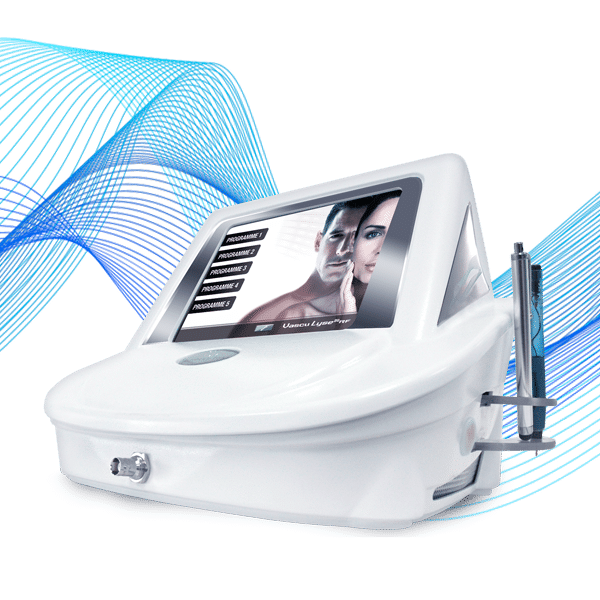

Silhouet-Tone VASCULYSE 2G (BI-V)
Prices available to wholesalers only.
AN EXCITING NEW SERVICE FOR YOUR EXISTING CLIENTELE: THERMOCOAGULATION
- A simple technique
- A user-friendly unit
- With instant results
Your clients need no longer “live with” unsightly and unpleasant vascular skin imperfections. They can move freely and confidently, without the self-consciousness that blemishes can bring. Your clients will look better… and feel better about themselves.
THE SKIN CONDITION
Telangiectasia occurs when small blood capillary vessels are permanently dilated, producing tiny little red lines visible at the surface of the skin. It is a condition that develops as we age, usually appearing in the mid-40s, sometimes earlier on those with fair skin. Extreme cold weather and excessive sun exposure are the most recognized causes.
THE BENEFITS
Small capillary vessels are responsible for cell nutrition. Their impairment can affect the appearance and function of the skin. During VascuLyse 2G RF treatments, the blood into the damaged vessels is coagulated. The appearance of the skin noticeably improves.
THE SAFETY
During treatment, the probe simply touches the skin surface, following the dilated capillary. Vascular blemishes disappear on contact.
HOW VASCULYSE 2G RF WORKS?
VascuLyse 2G RF thermocoagulation is a product of recent innovations in the field of electronics. It produces perfectly targeted “heat energy” resulting in a thermal lesion. Heat is generated in the capillary vessels resulting in the instant disappearance of blemishes without risks of epidermal damage.
Fully computerized controls, user-friendly features, PREPROGRAMMED FUNCTIONS and simplicity all in one
- Select the program: program 1, program 2…
- Start Working: Vasculyse 2G RF will automatically choose the proper setting.
Technical information
TÜV CERTIFIED* AND HEALTH CANADA cleared medical device
Weight 3.4 kg (7.5 lbs)
Width 33 cm (13’’)
Height 23 cm (9.1’’)
Depth 31.5 cm (12.4’’)
Voltage 120 / 230 V
Frequency 60 / 50 Hz
Current 1.0 / 0.5 A
Protection Class 1 (Grounded)
Patient Applied Part Type BF
Operating Mode Continuous
Maximum Output Power 10 W
Tolerance/Accuracy of Display 15%
Rated Load 1 KOhm
Rated Output Frequency 4 MHz
Maximum Output Voltage 300 VAC
Materials Steel & Thermoform casting
Electronics Microprocessor controlled
(*) Tested to comply to the applicable standards and equipment specifications:
ICES-003:2004.
FCC Part 15 Subpart B:2010 & EN 60601-1-2:2007-(Ed 3.0) & EN 60601-2-2.
CAN/CSA 22.2 No. 60601-1:2008 excluding Biocompatibility (clause 11. 7), Usability (clauses 7.1.1 and 12.2), PEMS (clause 14), and EMC (clauses 7.9.2.2 and 17).
CAN/CSA C22.2 No. 60601-2-2:2009 excluding EMC (clause 17).
UL 60601-1:2003 excluding EMC (clauses 6.8.2 and 36), Biocompatibility (clause 48), and PEMS (clause 52.1 as it pertains to IEC 60601-1-4).
IEC 60601-2-2:2006 excluding EMC (clause 36).
ANSl/AAMI ES 60601-1/A2:2010 excluding Biocompatibility (clause 11.7), Usability (clauses 7.1.1and12.2), PEMS {clause 14), and EMC (clauses 7.9.2.2 and 17).
IEC 60601-2-2:2009 excluding EMC (clause 17).
Unit Dimensions:
Width: 13 in (330 mm)
Height: 9,1 in (230 mm)
Depth: 12,4 in (315 mm)
Unit Weight: 7.5 lb (3.4 kg)
